Introduction to computer networks?

A computer network is a system that connects two or more computers together to enable communication and resource sharing between them. These networks can range in size from small local networks (LANs) to global networks such as the Internet.

Computer networks can be classified based on their geographical scope. LANs are networks that connect devices within a limited geographical area, such as a home or office. WANs (Wide Area Networks) connect devices over a large geographical area, such as a city, state or even country. MANs (Metropolitan Area Networks) are networks that connect devices within a metropolitan area, typically larger than a LAN but smaller than a WAN.

The basic components of a computer network include network devices (such as routers, switches, hubs, and modems), network protocols (such as TCP/IP), and network services (such as email, file sharing, and web browsing). Network devices are responsible for transmitting data across the network, while network protocols determine how the data is transmitted.

There are several types of network topologies, such as bus, star, ring, mesh, and tree. A network topology refers to the way in which devices are interconnected on a network.

Computer networks have become an essential part of modern life, facilitating communication, collaboration, and access to information and resources. They are used in a variety of settings, including homes, schools, businesses, and government organizations.

Networking Requirements:-

  1. Scalability: The network should be designed to accommodate future growth and changes, without requiring major upgrades or overhauls.
  2. Reliability: The network should be reliable and able to maintain connectivity at all times. This may involve redundancy and failover mechanisms to ensure that the network remains operational in the event of failures.
  3. Security: The network should be secure, with appropriate measures in place to prevent unauthorized access, data breaches, and other security threats.
  4. Bandwidth: The network should provide sufficient bandwidth to support the traffic demands of the users and applications running on it. This may require careful planning and management to ensure that the network can handle peak traffic loads.
  5. Quality of Service (QoS): The network should provide appropriate levels of QoS to ensure that critical applications receive the necessary bandwidth and priority to function properly.
  6. Compatibility: The network should be compatible with the devices and applications that will be used on it. This may require selecting specific protocols or technologies to ensure compatibility.
  7. Management: The network should be easy to manage and maintain, with appropriate tools and processes in place to monitor and troubleshoot issues as they arise.

Connection method

Ethernet: Ethernet is a wired networking technology that uses twisted-pair cables to transmit data between devices. It is widely used in local area networks (LANs) and is capable of high-speed data transfer.

Wi-Fi: Wi-Fi is a wireless networking technology that uses radio waves to transmit data between devices. It is commonly used in home and office networks, as well as public hotspots.

Bluetooth: Bluetooth is a short-range wireless technology that is used to connect devices such as smartphones, laptops, and headphones. It is often used for file transfers and audio streaming.

USB: USB (Universal Serial Bus) is a wired connection method that is used to connect devices such as printers, scanners, and external hard drives to a computer. It can also be used to create ad-hoc networks between computers.

FireWire: FireWire is a high-speed wired connection method that is commonly used for connecting devices such as video cameras and external hard drives to a computer. It is capable of high-speed data transfer and is commonly used in professional audio and video applications.

Fiber-optic: Fiber-optic is a wired connection method that uses fiber-optic cables to transmit data at very high speeds over long distances. It is commonly used in wide area networks (WANs) and internet backbones.

Types of networks based on the physical scope

Local Area Network (LAN): A LAN is a network that connects devices within a limited geographical area, such as a home, office, or building. LANs are typically used for sharing resources such as files, printers, and internet connections.

Metropolitan Area Network (MAN): A MAN is a network that connects devices within a metropolitan area, typically larger than a LAN but smaller than a WAN. MANs are often used to connect multiple LANs within a city or region.

Wide Area Network (WAN): A WAN is a network that connects devices over a large geographical area, such as a city, state, or even country. The Internet is the largest WAN in existence, connecting devices all over the world.

Campus Area Network (CAN): A CAN is a network that connects devices within a campus or university environment. CANs are typically used to connect multiple buildings within a single campus.

Storage Area Network (SAN): A SAN is a specialized network used for storage purposes. It connects servers and storage devices to provide centralized storage and management of data.

Peer-to-peer (P2P): Peer-to-peer (P2P) networking is a type of networking in which computers and other devices communicate and share resources directly with each other, rather than through a central server or network. In a P2P network, all devices are considered equal and can act as both clients and servers, sharing resources such as files, printers, and internet connections.

P2P networks are commonly used for file sharing, such as sharing music, movies, and other digital content. Some of the benefits of P2P networking include:

Decentralized: P2P networks are decentralized, which means there is no central server or authority controlling the network. This makes them less vulnerable to system failures and cyber attacks.

Cost-effective: P2P networking can be more cost-effective than traditional client-server networks, as there is no need for expensive server hardware or software.

Scalable: P2P networks can be easily scaled up or down, depending on the number of devices and resources being shared.

The concept of IP address

An IP address, or Internet Protocol address, is a unique identifier assigned to each device connected to the internet. It is used to identify and communicate with other devices on the internet or local network.

An IP address consists of a series of numbers separated by periods, such as There are two types of IP addresses: IPv4 and IPv6. IPv4 addresses are the most commonly used and consist of 32 bits, allowing for approximately 4.3 billion unique addresses. IPv6 addresses, on the other hand, consist of 128 bits, allowing for an almost infinite number of unique addresses.

IP addresses are used to route data packets across the internet or local network. When a device wants to communicate with another device, it sends a data packet containing the destination IP address. Routers and other network devices then use this address to direct the data packet to its intended recipient.

IP addresses can be assigned dynamically or statically. Dynamic IP addresses are assigned by a DHCP (Dynamic Host Configuration Protocol) server, which automatically assigns a unique IP address to each device when it connects to the network. Static IP addresses, on the other hand, are manually assigned to a device and do not change unless they are manually reconfigured.

Domain name System (DNS) Concepts:

The Domain Name System (DNS) is a system used to translate human-readable domain names, such as, into IP addresses that can be understood by computers. DNS is essentially a phone book for the internet, mapping domain names to IP addresses.

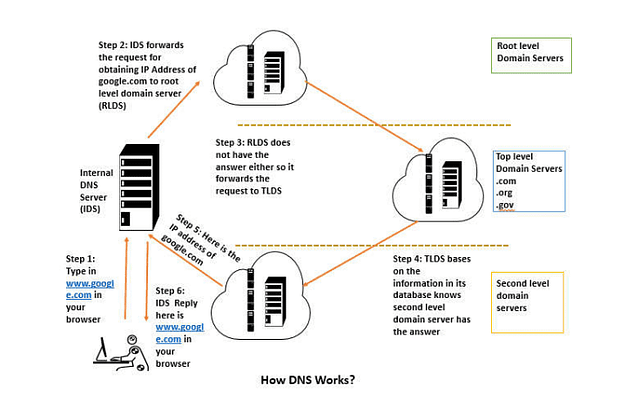

When a user types a domain name into a web browser, the browser sends a request to a DNS resolver, asking for the IP address associated with the domain name. The resolver then looks up the domain name in a series of DNS servers until it finds the IP address associated with the domain name. The IP address is then returned to the browser, allowing it to connect to the website.

DNS is made up of several components, including:

Root servers: These are the highest level of DNS servers and are responsible for resolving requests for top-level domains, such as .com, .org, and .net.

Top-level domain (TLD) servers: These are responsible for resolving requests for specific top-level domains, such as .com or .org.

Authoritative name servers: These are responsible for storing information about specific domain names and their associated IP addresses.

DNS resolvers: These are programs or servers that receive DNS requests from clients and attempt to resolve the domain name to an IP address.

Web Hosting Concepts:

The service of providing storage space and access to websites and other online content on the internet. Web hosting providers offer a range of services. That allow individuals and businesses to make their websites accessible on the internet.

Some key concepts related to web hosting include:

Web servers: Web servers are computers that host websites and other online content. Responsible for delivering that content to users who request it. Web hosting providers typically operate multiple web servers to ensure high availability and reliability.

Domain names: A domain name is the unique address used to access a website, such as Web hosting providers may offer domain registration services, which allow individuals and businesses to register their own domain names.

Storage space: Web hosting providers typically offer a certain amount of storage space on their servers. Where website owners can store their website files, images, videos, and other content.

Bandwidth: Bandwidth refers to the amount of data that can be transferred.he web server and users who access the website. Web hosting providers may limit the amount of bandwidth available to each website, or offer plans with different levels of bandwidth based on website traffic.

Content management systems (CMS): A CMS is a software platform that allows website owners to create, manage, and publish online content, such as articles, blog posts, images, and videos. Many web hosting providers offer popular CMS platforms, such as WordPress, Joomla, and Drupal, which can be installed and managed through the hosting control panel.

Security: Web hosting providers may offer a range of security features to protect websites from hacking, malware, and other online threats. These may include SSL certificates, firewalls, and regular security updates.

Difference between a Registry and a Registrar

A domain name registry and a domain name registrar are two different entities that play distinct roles in managing domain names on the internet.

A domain name registry is an organization that manages the registration of domain names within a specific top-level domain (TLD), such as .com, .org, or .net. The registry maintains a database of all registered domain names within its TLD, and ensures that each domain name is unique and properly registered. The registry also manages the technical infrastructure required to operate the TLD, including the root zone file and the domain name system (DNS) servers that enable the resolution of domain names to IP addresses. Examples of domain name registries include Verisign (for the .com and .net TLDs) and Public Interest Registry (for the .org TLD).

A domain name registrar, on the other hand, is a company that provides domain name registration services to individuals and businesses. Registrars act as intermediaries between domain name holders and the domain name registry, facilitating the registration, renewal, and transfer of domain names on behalf of their customers. Registrars typically charge a fee for their services, and may offer additional services such as web hosting, email hosting, and website building tools. Examples of domain name registrars include GoDaddy, Namecheap, and Network Solutions.

Investigation procedure for Domain names

The investigation procedure for domain names typically involves a series of steps to gather information about the domain name and its associated website or online presence. Some of the key steps involved in a domain name investigation may include:

Conduct a WHOIS lookup: A WHOIS lookup is a query that reveals the ownership and registration details of a domain name. WHOIS data can be accessed through a number of online tools, and may include information such as the name and contact details of the domain owner, the domain registration date, and the expiration date.

Perform a reverse DNS lookup: A reverse DNS lookup involves querying the domain name system (DNS) to find the IP address associated with a domain name. This can reveal information about the web hosting provider and the location of the web server.

Analyze website content: Analyzing the content of the website associated with the domain name can provide insights into the purpose and nature of the site. This may involve examining the text, images, and other media on the site, as well as any embedded scripts or code.

Check for trademark infringement: If the domain name is similar to a registered trademark, it may be subject to legal action for trademark infringement. Checking for existing trademarks and conducting a trademark search can help to identify potential issues.

Review website traffic and backlinks: Analyzing website traffic and backlinks can provide insights into the popularity and authority of the website. As well as any potential spam or black hat SEO tactics being used.

Conduct social media analysis: Examining the social media presence associated with the domain name, such as Facebook, Twitter, or LinkedIn profiles, can provide additional information about the website owner and their online activity.
